Product information & resources

Product description

Expand to view the product description.

View description

Product description

Coloplast offers the Titan® family of Inflatable Penile Prosthesis (IPPs) for those men that need surgical intervention. The Titan family of products are designed to be surgically implanted in the penis for the management of erectile dysfunction.

The Titan® Touch and Titan® implants consists of:

• Two Bioflex® cylinders
• A pump.
• A reservoir

Titan® Family of IPP Products

The Titan family of IPP products are available in a variety of lengths ranging from 11 cm to 28 cm, with two different pump options. All standard and narrow base cylinders are provided pre-connected to the pump and the XL cylinders are available as separate components (24cm, 26cm and 28cm).

All components of the Titan® Touch and Titan IPP products incorporate a hydrophilic coating on all external surfaces that offers a physician their choice of aqueous solution that rapidly absorbs onto the device surface and promotes easier device implantation¹.


Titan® Touch Inflatable Penile Prosthesis
3-Piece Inflatable Penile Prosthesis with Hydrophilic Coating and One Touch Release Pump

Key Features and Advantages:

• Touch pump: one touch of the deflate button allows for easy deflation of the device¹
• The Bioflex® material of the cylinders allows for unmatched cylinder strength, girth and rigidity¹
• Reduced risk of auto-inflation with Lock-out™ valve on the Cloverleaf reservoir¹
• Hydrophilic coating to allow a physician to use the aqueous solution of their choice to minimize infection risk and aid in surgical placement²
• Zero degree angle proximal base input tubing for ease of surgical placement¹
• Soft molded tip designed for optimal anatomic positioning¹
• Tubing length varies depending on length of cylinder to allow for proper pump placement



References:

1. Data on file with Coloplast.

2. Steven K. Wilson, MD, Anti-Infection Dip Suggestions for the Coloplast Titan Inflatable Penile Prosthesis in the Era of the Infection Retardant Coated Implant,
J Sex Med 2011; 8: 2647–2654





BRIEF STATEMENT

Indications

The Titan and Titan Touch Inflatable Penile Prosthesis is indicated for male patients suffering from erectile dysfunction (impotence) who are candidates for implantation of a penile prosthesis.



Contraindications

The Titan and Titan Touch Inflatable Penile Prosthesis is contraindicated in patients with an active infection present anywhere in the body, especially urinary tract or genital infection; with a documented sensitivity to silicone; with unresolved problems affecting urination, such as an elevated residual urine volume secondary to bladder outlet obstruction or neurogenic bladder; or, unwilling to undergo any further surgery for device revision.



Warnings

Implantation of the device may make latent natural erections, as well as other interventional treatment options, impossible.

Men with diabetes or spinal cord injuries, as well as immunocompromised patients, may have an increased risk of infection associated with a prosthesis.

Failure to evaluate and promptly treat erosion may result in a substantial worsening of the condition, leading to infection and loss of tissue.

Implantation of a penile prosthesis may result in penile shortening, curvature or scarring.

Pre-existing abdominal or penile scarring or contracture may make surgical implantation more complicated or impractical.



Precautions

Surgeons implanting penile prostheses should be familiar with the currently available techniques for measuring the patient, determining implant size, and performing the surgery.

Removal of an implanted prosthesis without timely reimplantation of a new prosthesis may complicate subsequent reimplantation or may make it impossible.



Potential Complications

Potential complications include scrotal swelling, auto-inflation, discomfort, angulation/curvature, edema, device malfunction, chronic pain, difficulty with ejaculation, transient urinary retention.



The information provided is not comprehensive with regard to product risks. For a comprehensive listing of indications, contraindications, warnings, precautions, and adverse events refer to the product’s Instructions for Use. Alternatively, you may contact a Coloplast representative at 1-800-258-3476 and/or visit the company Website at www.coloplast.com.



Caution: Federal law (USA) restricts this device to sale by or on the order of a physician.

Minneapolis, MN

12/4/2017

Close

Product variants

Expand to see all variants of the product.

View product variants
Close

Product variants

Product name Item number Units in package
Titan Standard Assembly Kit 519170 1
Titan Touch Pump 517750 1
Titan Touch Narrow Base Infrapubic 11cm EN2811 1
Titan Touch Narrow Base Infrapubic 14cm EN2814 1
Titan Touch Narrow Base Infrapubic 16cm EN2816 1
Titan Touch Narrow Base Infrapubic 18cm EN2818 1
Titan Touch Narrow Base Scrotal 11 cm EN2911 1
Titan Touch Narrow Base Scrotal 14 cm EN2914 1
Titan Touch Narrow Base Scrotal 16 cm EN2916 1
Titan Touch Narrow Base Scrotal 18 cm EN2918 1
Titan Touch Infrapubic 14cm ES2814 1
Titan Touch Infrapubic 16cm ES2816 1
Titan Touch Infrapubic 18cm ES2818 1
Titan Touch Infrapubic 20cm ES2820 1
Titan Touch Infrapubic 22cm ES2822 1
Titan Touch Scrotol 14cm ES2914 1
Titan Touch Scrotol 16cm ES2916 1
Titan Touch Scrotol 18cm ES2918 1
Titan Touch Scrotol 20cm ES2920 1
Titan Touch Scrotol 22cm ES2922 1
Titan Touch Narrow Base Assembly Kit 519300 1
Titan Cloverleaf Reservoir 75cc ER8075 1
Titan Cloverleaf Reservoir 125cc ER8125 1
Titan XL Zero Degree Cylinder 24cm E17924 1
Titan XL Zero Degree Cylinder 26cm E17926 1
Titan XL Zero Degree Cylinder 28cm E17928 1
Close

Key benefits

Titan® Cylinders Bioflex® is the Difference

Titan® Cylinders

Bioflex® is the Difference
Close

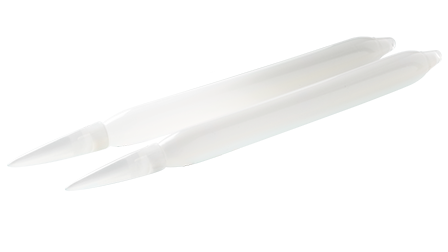

Titan® Cylinders

Bioflex is a unique and proprietary material engineered specifically for Coloplast penile implant cylinders.



Key cylinder performance benefits compared to a competitive penile implant:

Durability: The Titan® IPP is built for outstanding fatigue resistance capable of 6.5 Million+ cycles (inflation and deflation) to material failure3, and provides 3x more Durablity.3

Strength: Bioflex withstands higher pressure with tensile strength of 7,500 psi and has 8x more strength.4

Girth: The Titan® IPP cylinders can expand to the maximum size of the corpora with maximum girth expansion of 21mm of each cylinder. This provides 17% more girth.1



References:

1. Data on file with Coloplast.

3. Pritchard C., et al. Comparison of AMS 700 CX and Coloplast Titan Inflatable Penile Prosthesis Cylinders Subjected To In Vitro Cyclic Buckling

4. Coloplast Test Data: Bioflex Monograph

Close
Titan® Hydrophilic Coating Absorbing and lubricious

Titan® Hydrophilic Coating

Absorbing and lubricious
Close

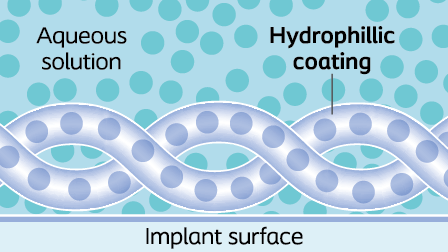

Titan® Hydrophilic Coating

The hydrophilic coating on the Titan® IPP’s is covalently bonded, providing long-term attachment
to the surface of the entire device.1


Coloplast implant coating coverage compared to competitor5:






Absorbs aqueous solutions: The coating rapidly absorbs any aqueous solution of choice prior to implantation, and provides increased surface lubricity to decrease bacterial adherence.2

Ease of implantation: The hydrophilic coating may provide easier device implantation.1





References:

1. Data on file with Coloplast.

2. Steven K. Wilson, MD, Anti-Infection Dip Suggestions for the Coloplast Titan Inflatable Penile Prosthesis in the Era of the Infection retardant Coated Implant, J Sex Med 2011;8:2647–2654

5. AMS 700TM with MS PumpTM Penile Prosthesis Operating Room Manual; American Medical Systems, Inc., August 2016

Close
Titan® Touch Pump Designed with the patient in mind

Titan® Touch Pump

Designed with the patient in mind
Close

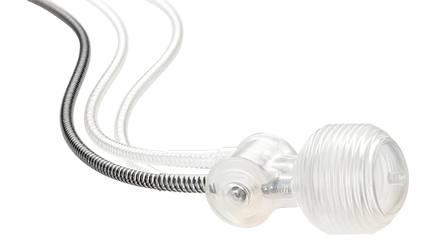

Titan® Touch Pump

The Titan® Touch is a one touch release pump designed for easier product deflation and a quicker
return to a flaccid state.1


One Touch Release: Titan® Touch is the only penile implant pump with a true one-touch release. It only requires momentary compression of the deflation button to allow complete fluid transfer out of the cylinders.1

Easy identification: Titan® Touch pump is easy to locate, inflate and deflate.1



References:

1. Data on file with Coloplast.

Close

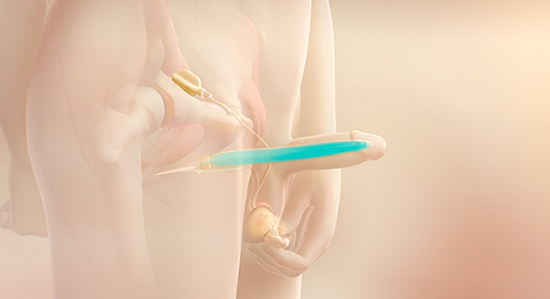

Video & animations
